Vinyl Windows


PAC's premium vinyl windows are a great choice for quality. With virtually no maintenance, PAC's vinyl windows never need to be painted and will not rot or warp.

PAC's premium vinyl windows are built from a 7 lbs PVC vinyl extrusion. Heat-welded, mitered corner give these windows a much sturdier built over mechanically fasten frames, and an overall quality appearance.  We offer brick mold which gives our windows a finished look, and also serves as J-channel that accepts a wide variety of structural sidings.

We use Cardinal Glass Industries glass in our vinyl windows. PAC's standard glass choice is Cardinal's XL Edge double pane glass with its LoĒ²-270® coating. For full details of all Cardinal's glass, please visit Cardinal Glass Industries.


PAC Warranty
V46 Information Sheets
V46SH Testing (CAR 109-112)
V46SS Testing (CAR 103-104)
V46PI Testing (CAR 105-108)
V21 Information Sheets
V21SH Testing (CAR 119-120)
V21SH Testing (CAR 115-116)
VS21SS Testing (CAR 117-118)
VS21SS Testing (CAR 121-222)
V21PI Testing (CAR 113-114)
V21PI Testing (CAR 123-124)

Vinyl Windows


PAC's premium vinyl windows are a great choice for quality. With virtually no maintenance, PAC's vinyl windows never need to be painted and will not rot or warp.

PAC's premium vinyl windows are built from a 7 lbs PVC vinyl extrusion. Heat-welded, mitered corner give these windows a much sturdier built over mechanically fasten frames, and an overall quality appearance.  We offer brick mold which gives our windows a finished look, and also serves as J-channel that accepts a wide variety of structural sidings.

We use Cardinal Glass Industries glass in our vinyl windows. PAC's standard glass choice is Cardinal's XL Edge double pane glass with its LoĒ²-270® coating. For full details of all Cardinal's glass, please visit Cardinal Glass Industries.




PAC Warranty
V46 Information Sheets
V46SH Testing (CAR 109-112)
V46SS Testing (CAR 103-104)
V46PI Testing (CAR 105-108)
V21 Information Sheets
V21SH Testing (CAR 119-120)
V21SH Testing (CAR 115-116)
VS21SS Testing (CAR 117-118)
VS21SS Testing (CAR 121-222)
V21PI Testing (CAR 113-114)
V21PI Testing (CAR 123-124)
Styles

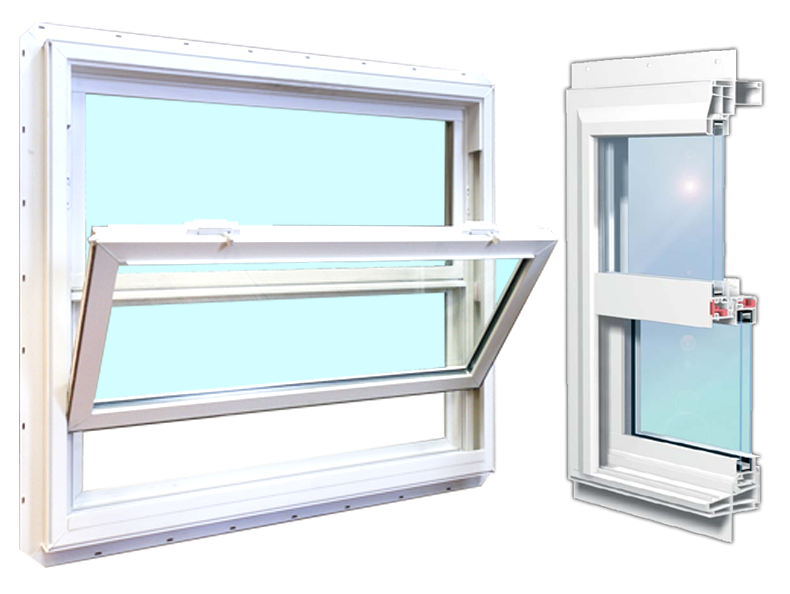

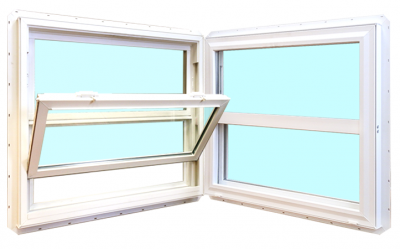

Vinyl Single Hung
Vinyl Single Hung
Vinyl Horizontal Slider Window
Vinyl Horizontal Slider Window
Vinyl Picture Window (Fixed)
Vinyl Picture Window (Fixed)
Styles
Vinyl Single Hung
Vinyl Single Hung
Vinyl Horizontal Slider Window
Vinyl Horizontal Slider Window
Vinyl Picture Window (Fixed)
Vinyl Picture Window (Fixed)
Styles
Vinyl Single Hung
Vinyl Single Hung
Vinyl Horizontal Slider Window
Vinyl Horizontal Slider Window
Vinyl Picture Window (Fixed)
Vinyl Picture Window (Fixed)
Features

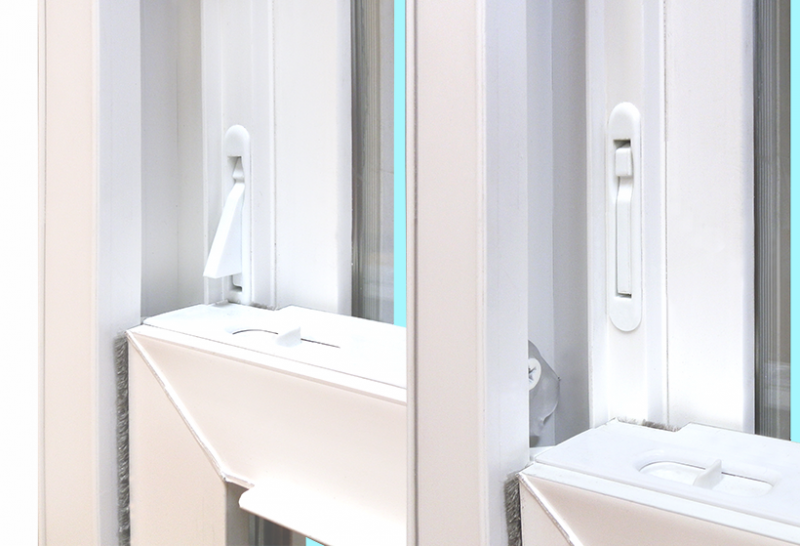

Vinyl Vent Stops
Vinyl Vent Stops

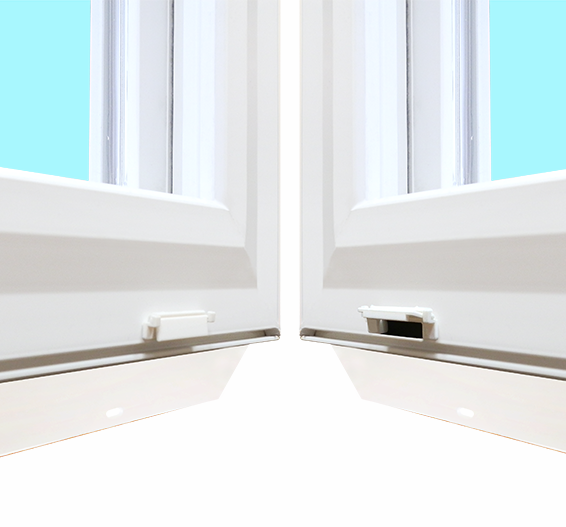

Weep Holes
Weep Holes

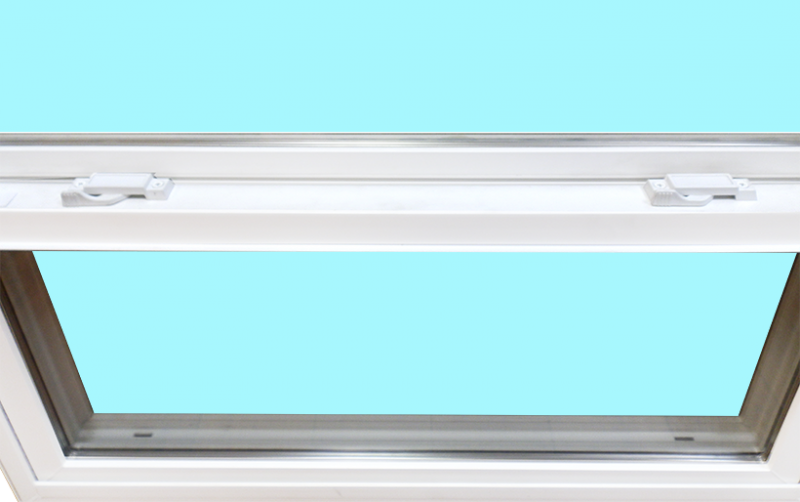

Double Latches
Double Latches

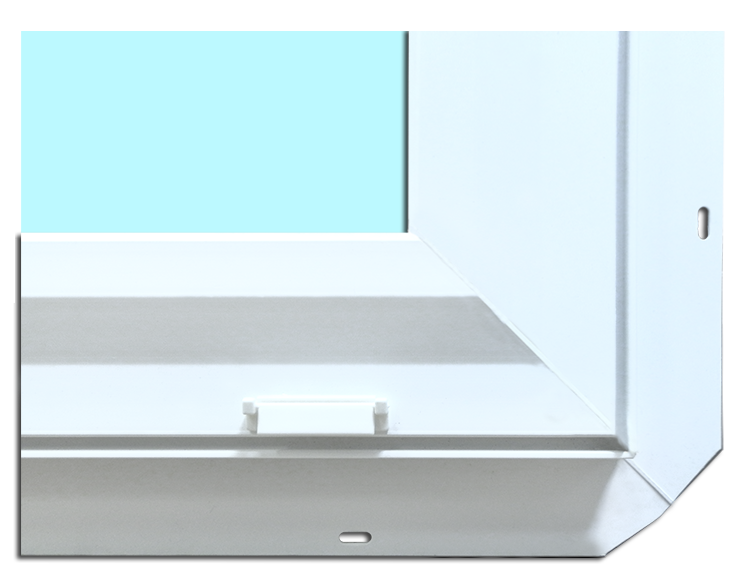

Without Brickmold
Without Brickmold

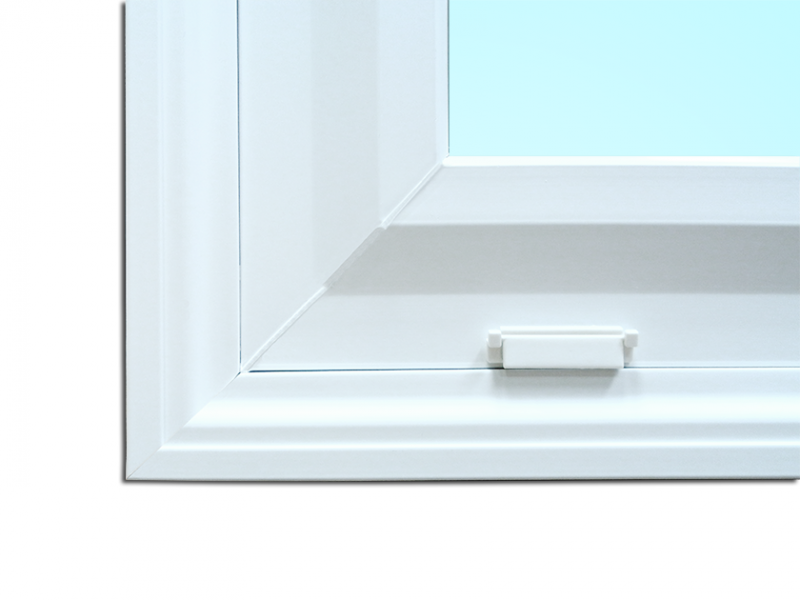

With Brickmold
With Brickmold
Features
Vinyl Vent Stops
Vinyl Vent Stops
Weep Holes
Weep Holes
Double Latches
Double Latches
Without Brickmold
Without Brickmold
With Brickmold
With Brickmold
Features
Vinyl Vent Stops
Vinyl Vent Stops
Weep Holes
Weep Holes
Double Latches
Double Latches
Without Brickmold
Without Brickmold
With Brickmold
With Brickmold
Florida Approved
Product Product Description Florida Approval#
SS46 PVC Single Slider XO 72x48 New Construction FL16613.1-R1
PI46 PVC NC Picture Window 60x84 New Construction Frame FL16614.1-R1
SH46 PVC Single Hung 40x63 Single Hung with Metal Locks FL17027.1-R1
SH46 PVC Single Hung 40x63 Single Hung with Metal Locks and Fully Reinforced Sash FL17027.2-R1

Keystone Certifications
Model Name Rating Referenced Standard CAR#
SH46 PVC Single Hung w/Composite Locks Class R-PG45 762x1346* (30x53*)-Type H AAMA/WDMA/CSA 101/I.S.2/A440-08 757-111
SH46 PVC Single Hung w/Composite Locks Class R-PG45 762x1346* (30x53*)-Type H AAMA/WDMA/CSA 101/I.S.2/A440-08 757-112
SH46 PVC Single Hung w/Metal Locks Class R-PG40 1016x1600 (40x63)-Type H AAMA/WDMA/CSA 101/I.S.2/A440-08 757-109
SH46 PVC Single Hung w/Metal Locks Class R-PG45 1016x1600 (40x63)-Type H Neg DP=50 AAMA/WDMA/CSA 101/I.S.2/A440-08 757-110
SS46 PVC Single Slider 1/4-1/2-1/4 XOX Class R-PG30 2731x1207* (108x48*)-Type HS AAMA/WDMA/CSA 101/I.S.2/A440-08 757-104
SS46 PVC Single Slider XO Class R-PG30 1816x1207 (72x48)-Type HS AAMA/WDMA/CSA 101/I.S.2/A440-08 757-103
PI46 PVC NC Picture Window Class R-PG50 1524x2134 (60x84)-Type FW AAMA/WDMA/CSA 101/I.S.2/A440-08 757-105
PI46 PVC NC Picture Window Class R-PG50 1219x1829 (48x72)-Type FW Neg DP=60 AAMA/WDMA/CSA 101/I.S.2/A440-08 757-107
PI46 PVC Rep Picture Window Class R-PG50 1524x2134 (60x84)-Type FW Neg DP=55 AAMA/WDMA/CSA 101/I.S.2/A440-08 757-106
PI46 PVC Rep Picture Window Class R-PG50 1219x1829 (48x72)-Type FW Neg DP=70 AAMA/WDMA/CSA 101/I.S.2/A440-08 757-108
SHL21WW PVC Single Hung Class R-PG20 1219x1829 (48x72)-H Neg DP=25 AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-115
SHL21WW PVC Single Hung Class R-PG20 914x1372* (36x54*)-H Neg DP=45 AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-116
SHL21WW PVC Single Hung Wind Zone II @ 38 psf, 48x72 AAMA 1701.2-12 / FMHC&S Std. 3280.403 757-119
SHL21WW PVC Single Hung Wind Zone III @ 58 psf, 36x54 AAMA 1701.2-12 / FMHC&S Std. 3280.403 757-120
SSL21WW PVC Horizontal Slider XO Class R-PG15 1829x1524 (72x60)-HS AAMA 1701.2-12 / FMHC&S Std. 3280.403 757-117
SSL21WW PVC Horizontal Slider XO Class R-PG30 1626x1270 (64x50)-HS AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-118
SSL21WW PVC Horizontal Slider XO Wind Zone I @ +25/-12.5 psf, 72x60 XO AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-121
SSL21WW PVC Horizontal Slider XO Wind Zone II @ 46 psf, 64x50 XO AAMA 1701.2-12 757-122
PEL21W PVC Fixed Class R-PG50 1219x1854 (48x73)-Type FW AAMA 1701.2-12 / FMHC&S Std. 3280.403 757-113
PEL21W PVC Fixed Class R-PG50 914x1549* (36x61*)-Type FW AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-114
PEL21W PVC Fixed Wind Zone III @ 58 psf, 48x73 AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-123
PEL21W PVC Fixed Wind Zone III @ 58 psf, 36x61 AAMA 1701.2-12 / FMHC&S Std. 3280.403 757-124


Florida Approved
Product Product Description Florida Approval#
SS46 PVC Single Slider XO 72x48 New Construction FL16613.1-R1
PI46 PVC NC Picture Window 60x84 New Construction Frame FL16614.1-R1
SH46 PVC Single Hung 40x63 Single Hung with Metal Locks FL17027.1-R1
SH46 PVC Single Hung 40x63 Single Hung with Metal Locks and Fully Reinforced Sash FL17027.2-R1

Keystone Certifications
Model Name Rating Referenced Standard CAR#
SH46 PVC Single Hung w/Composite Locks Class R-PG45 762x1346* (30x53*)-Type H AAMA/WDMA/CSA 101/I.S.2/A440-08 757-111
SH46 PVC Single Hung w/Composite Locks Class R-PG45 762x1346* (30x53*)-Type H AAMA/WDMA/CSA 101/I.S.2/A440-08 757-112
SH46 PVC Single Hung w/Metal Locks Class R-PG40 1016x1600 (40x63)-Type H AAMA/WDMA/CSA 101/I.S.2/A440-08 757-109
SH46 PVC Single Hung w/Metal Locks Class R-PG45 1016x1600 (40x63)-Type H Neg DP=50 AAMA/WDMA/CSA 101/I.S.2/A440-08 757-110
SS46 PVC Single Slider 1/4-1/2-1/4 XOX Class R-PG30 2731x1207* (108x48*)-Type HS AAMA/WDMA/CSA 101/I.S.2/A440-08 757-104
SS46 PVC Single Slider XO Class R-PG30 1816x1207 (72x48)-Type HS AAMA/WDMA/CSA 101/I.S.2/A440-08 757-103
PI46 PVC NC Picture Window Class R-PG50 1524x2134 (60x84)-Type FW AAMA/WDMA/CSA 101/I.S.2/A440-08 757-105
PI46 PVC NC Picture Window Class R-PG50 1219x1829 (48x72)-Type FW Neg DP=60 AAMA/WDMA/CSA 101/I.S.2/A440-08 757-107
PI46 PVC Rep Picture Window Class R-PG50 1524x2134 (60x84)-Type FW Neg DP=55 AAMA/WDMA/CSA 101/I.S.2/A440-08 757-106
PI46 PVC Rep Picture Window Class R-PG50 1219x1829 (48x72)-Type FW Neg DP=70 AAMA/WDMA/CSA 101/I.S.2/A440-08 757-108
SHL21WW PVC Single Hung Class R-PG20 1219x1829 (48x72)-H Neg DP=25 AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-115
SHL21WW PVC Single Hung Class R-PG20 914x1372* (36x54*)-H Neg DP=45 AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-116
SHL21WW PVC Single Hung Wind Zone II @ 38 psf, 48x72 AAMA 1701.2-12 / FMHC&S Std. 3280.403 757-119
SHL21WW PVC Single Hung Wind Zone III @ 58 psf, 36x54 AAMA 1701.2-12 / FMHC&S Std. 3280.403 757-120
SSL21WW PVC Horizontal Slider XO Class R-PG15 1829x1524 (72x60)-HS AAMA 1701.2-12 / FMHC&S Std. 3280.403 757-117
SSL21WW PVC Horizontal Slider XO Class R-PG30 1626x1270 (64x50)-HS AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-118
SSL21WW PVC Horizontal Slider XO Wind Zone I @ +25/-12.5 psf, 72x60 XO AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-121
SSL21WW PVC Horizontal Slider XO Wind Zone II @ 46 psf, 64x50 XO AAMA 1701.2-12 757-122
PEL21W PVC Fixed Class R-PG50 1219x1854 (48x73)-Type FW AAMA 1701.2-12 / FMHC&S Std. 3280.403 757-113
PEL21W PVC Fixed Class R-PG50 914x1549* (36x61*)-Type FW AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-114
PEL21W PVC Fixed Wind Zone III @ 58 psf, 48x73 AAMA/WDMA/CSA 101/I.S.2/A440-08/11 757-123
PEL21W PVC Fixed Wind Zone III @ 58 psf, 36x61 AAMA 1701.2-12 / FMHC&S Std. 3280.403 757-124
