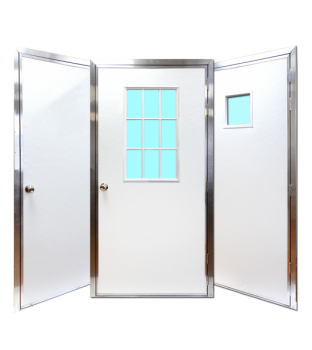

300 Series MD


PAC's MD 300 is our heaviest duty door.  Making up the core is an internal frame consisting of 2" x 6" lumber, laminated with 1/8" Masonite hardboard and fiberglass on both inside & out, wrapped in heavy duty extruded aluminum. Combined that with our 3-1/2" outside frame (jamb) and you'll have a very sound door.

  • 2x6 wood frame with solid polystyrene core with lumber frame covered with 1/8"hardboard sheet.
  • Engineered to support standard locksets & deadbolts, or panic hardware & door closures.
  • Heavy duty extruded aluminum surround channel inner frame with miter cut corners screwed together.
  • Five steel hinges riveted to outer frame with a screw hole for securing into studs for strength & security.
  • Extra heavy duty extruded aluminum frame 3-1/2" jamb which also serves an integral jamb.
  • Miter cuts welded for strength.
  • Aluminum kick panel on inside of door.
  • Vinyl bulb weather seal.
  • Built-in ½" tall threshold.
  • Adjustable steel striker plate for door lock.
  • Standard sizes include 3' x 6' 8" & 4' x 6' 8".
  • Made in the USA.

Applications include modular office industry and any structure needing a heavy duty outswing door.



PAC Warranty

300 Series MD


PAC's MD 300 is our heaviest duty door.  Making up the core is an internal frame consisting of 2" x 6" lumber, laminated with 1/8" Masonite hardboard and fiberglass on both inside & out, wrapped in heavy duty extruded aluminum. Combined that with our 3-1/2" outside frame (jamb) and you'll have a very sound door.

  • 2x6 wood frame with solid polystyrene core with lumber frame covered with 1/8"hardboard sheet.
  • Engineered to support standard locksets & deadbolts, or panic hardware & door closures.
  • Heavy duty extruded aluminum surround channel inner frame with miter cut corners screwed together.
  • Five steel hinges riveted to outer frame with a screw hole for securing into studs for strength & security.
  • Extra heavy duty extruded aluminum frame 3-1/2" jamb which also serves an integral jamb.
  • Miter cuts welded for strength.
  • Aluminum kick panel on inside of door.
  • Vinyl bulb weather seal.
  • Built-in ½" tall threshold.
  • Adjustable steel striker plate for door lock.
  • Standard sizes include 3' x 6' 8" & 4' x 6' 8".
  • Made in the USA.

Applications include modular office industry and any structure needing a heavy duty outswing door.





PAC Warranty
Features

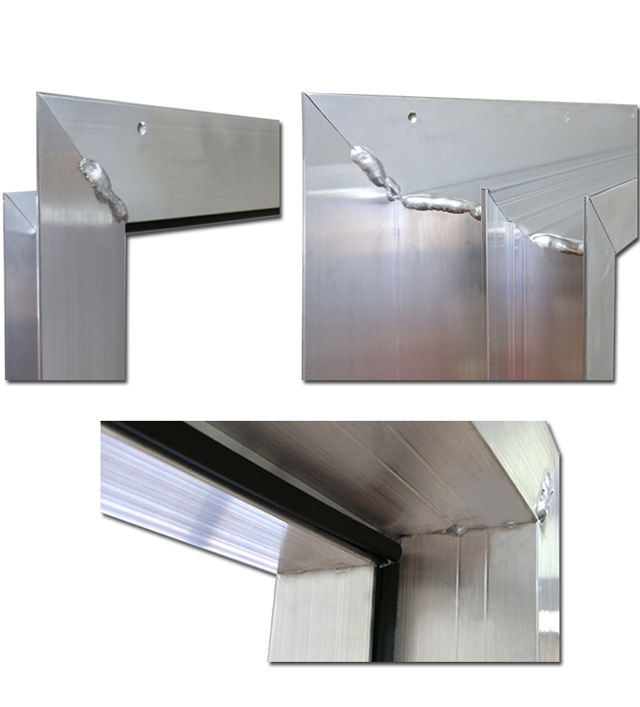

Welder Mitered Corner
Welder Mitered Corner

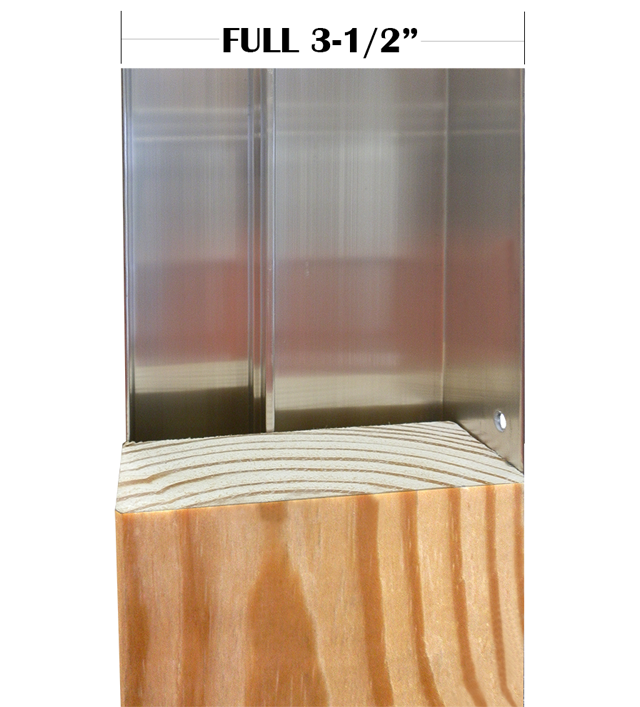

Full Frame
Full Frame

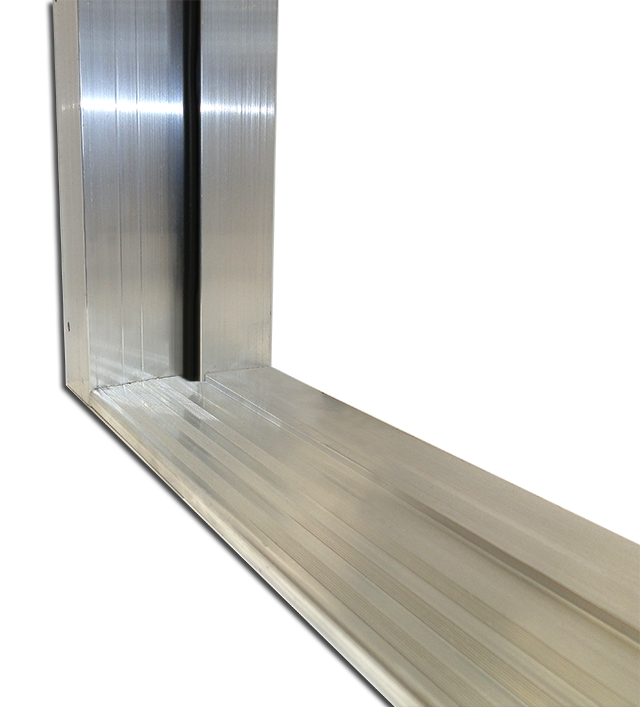

Threshold
Threshold

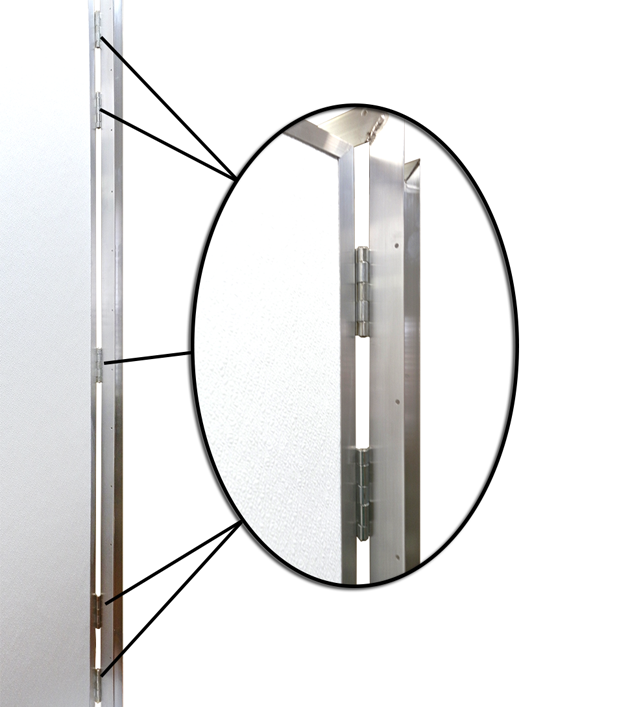

5 Heavy Duty Hinges
5 Heavy Duty Hinges
Features
Welder Mitered Corner
Welder Mitered Corner
Full Frame
Full Frame
Threshold
Threshold
5 Heavy Duty Hinges
5 Heavy Duty Hinges
Features
Welder Mitered Corner
Welder Mitered Corner
Full Frame
Full Frame
Threshold
Threshold
5 Heavy Duty Hinges
5 Heavy Duty Hinges
Door Colors
White
Off White
Tan
Hickory Moss
Grey/Pewter
Olive/Green
Brown
Black
Door Colors
White
Off White
Tan
Hickory Moss
Grey/Pewter
Olive/Green
Brown
Black
Door Colors
White
Off White
Tan
Hickory Moss
Grey/Pewter
Olive/Green
Brown
Black
Window Options
10 x 10
10 x 10 Diamond
4 x 24
9 Lite
15 Lite
18 x 20 Slider
18x38 Slider
Window Options
10 x 10
10 x 10 Diamond
4 x 24
9 Lite
15 Lite
18 x 20 Slider
18x38 Slider
Window Options
10 x 10
10 x 10 Diamond
4 x 24
9 Lite
15 Lite
18 x 20 Slider
18x38 Slider
Bore Prep

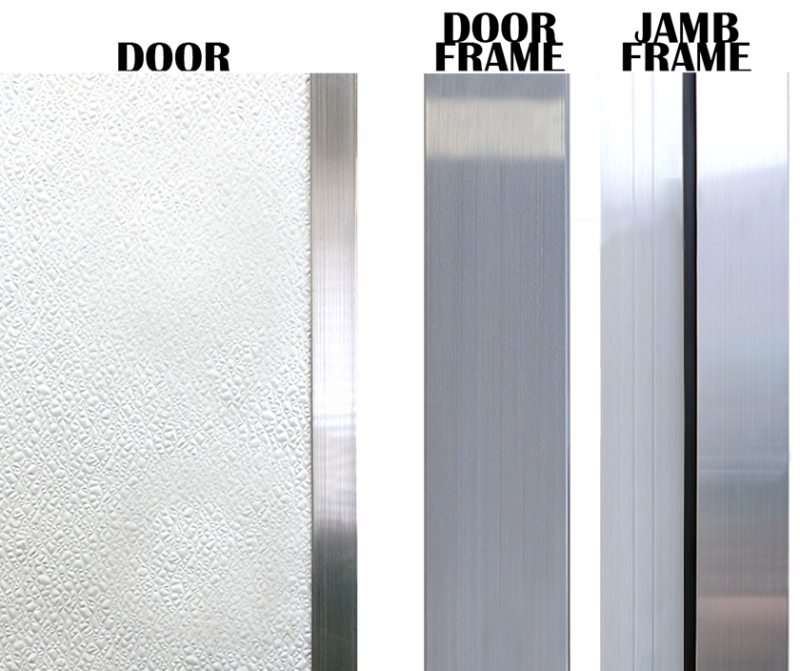

Blank
Blank

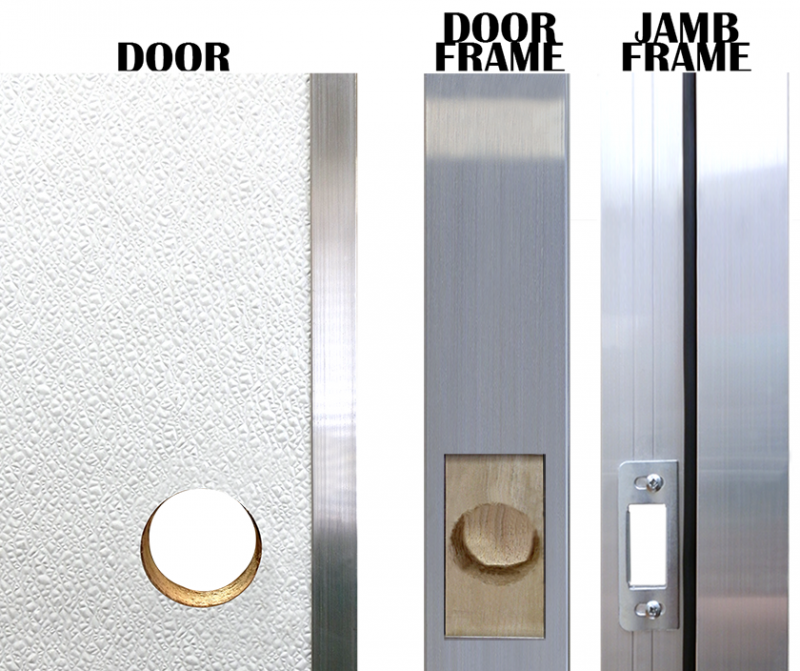

Door Knob Prep
Door Knob Prep

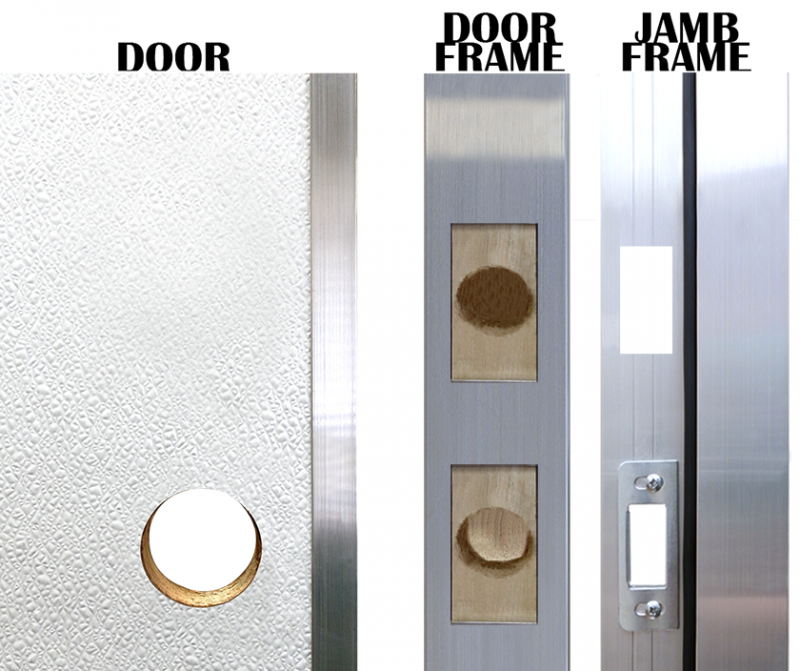

Door Knob & Deadbolt Back-set Prep
Door Knob & Deadbolt Back-set Prep

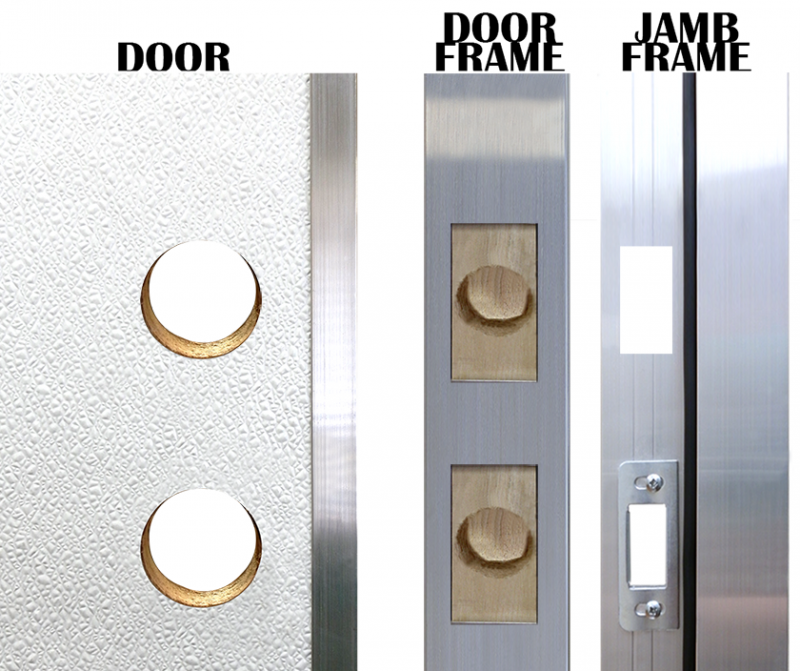

Door Knob & Deadbolt Prep
Door Knob & Deadbolt Prep
Bore Prep
Blank
Blank
Door Knob Prep
Door Knob Prep
Door Knob & Deadbolt Back-set Prep
Door Knob & Deadbolt Back-set Prep
Door Knob & Deadbolt Prep
Door Knob & Deadbolt Prep
Bore Prep
Blank
Blank
Door Knob Prep
Door Knob Prep
Door Knob & Deadbolt Back-set Prep
Door Knob & Deadbolt Back-set Prep
Door Knob & Deadbolt Prep
Door Knob & Deadbolt Prep
Hardware

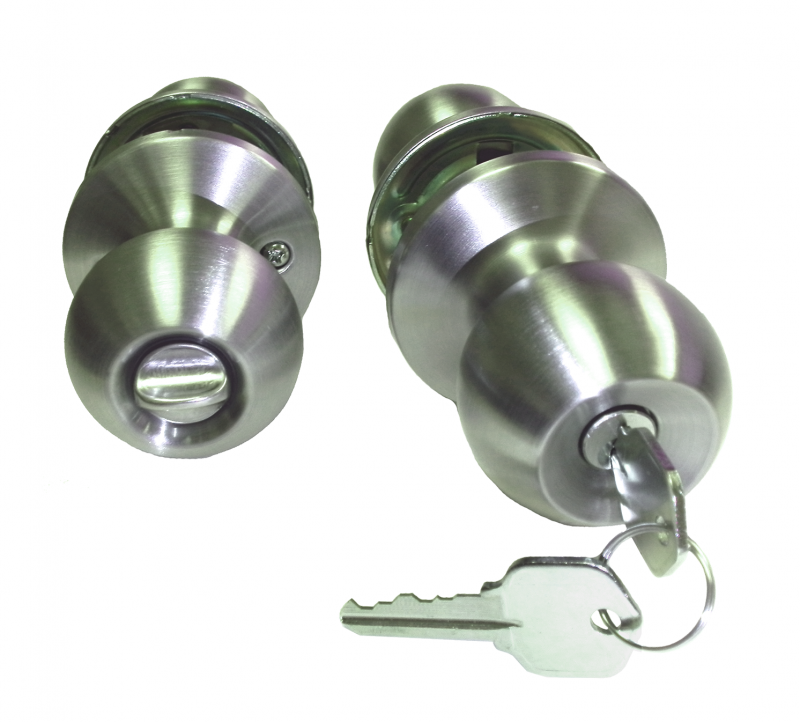

Door Knob
Door Knob

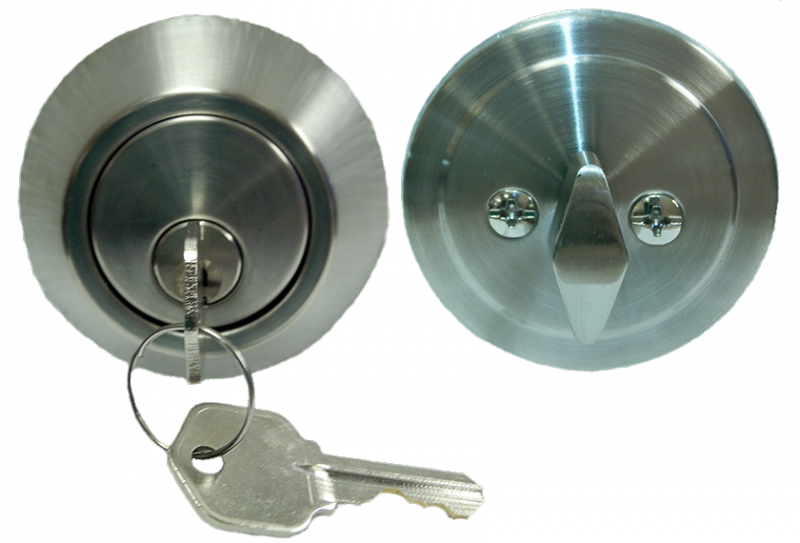

Deadbolt
Deadbolt

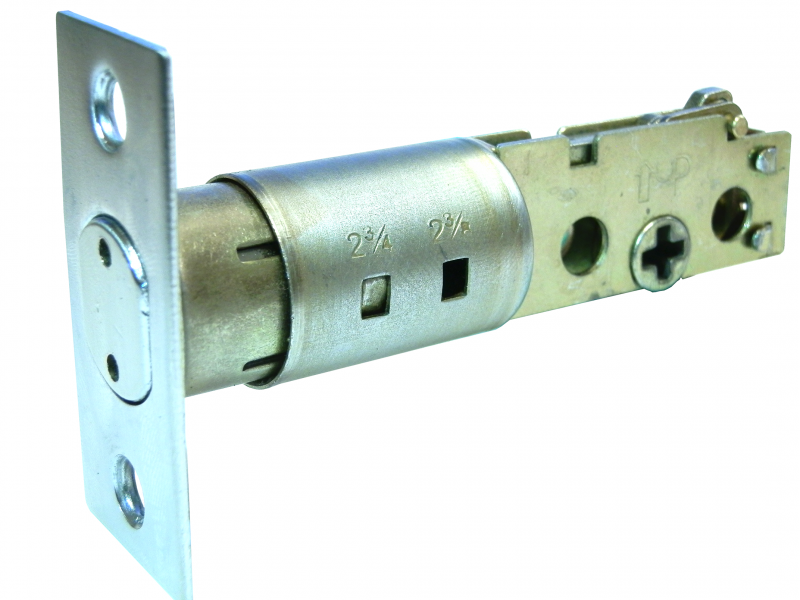

Screw Down Deadbolt Plunger
Screw Down Deadbolt Plunger

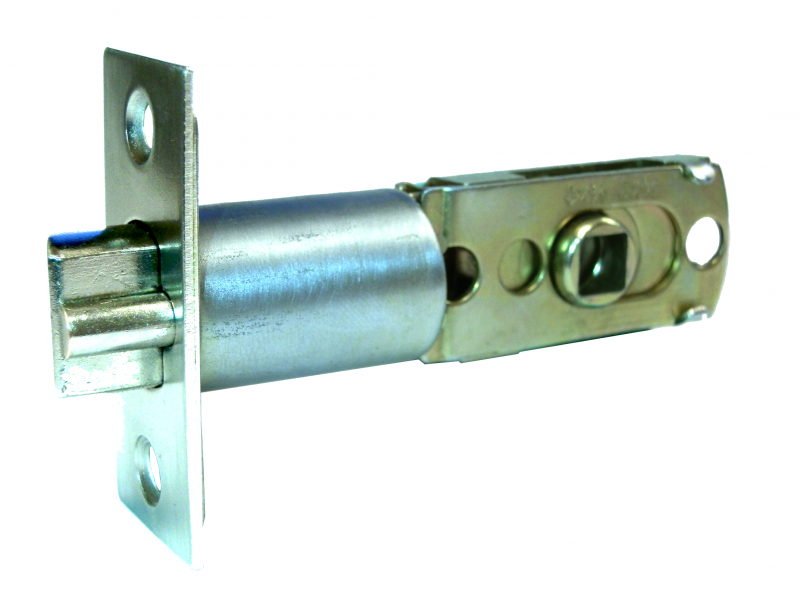

Door Knob Screw Down Plunger
Door Knob Screw Down Plunger

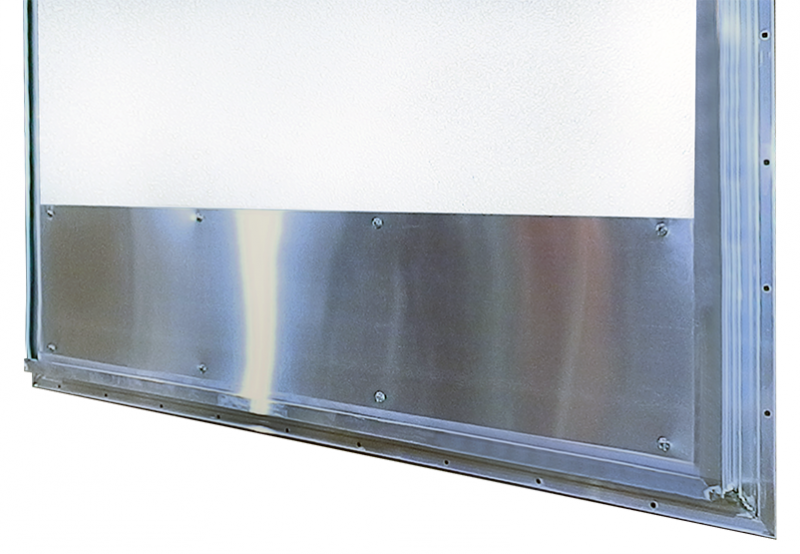

Kickplate
Kickplate

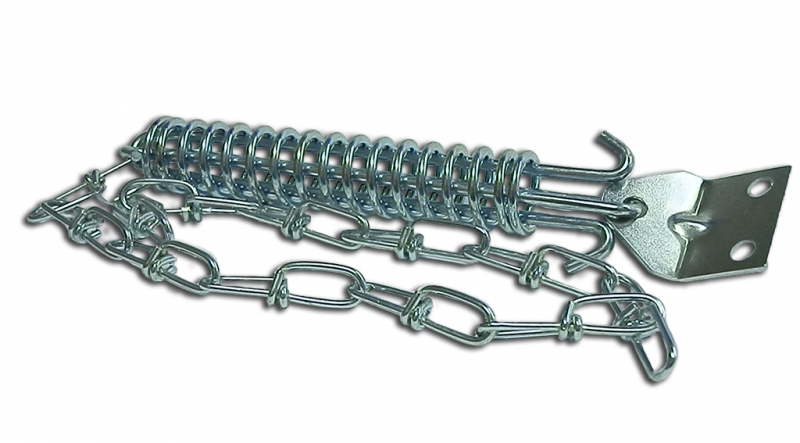

Safety Chain
Safety Chain
Hardware
Door Knob
Door Knob
Deadbolt
Deadbolt
Screw Down Deadbolt Plunger
Screw Down Deadbolt Plunger
Door Knob Screw Down Plunger
Door Knob Screw Down Plunger
Kickplate
Kickplate
Safety Chain
Safety Chain
Hardware
Door Knob
Door Knob
Deadbolt
Deadbolt
Screw Down Deadbolt Plunger
Screw Down Deadbolt Plunger
Door Knob Screw Down Plunger
Door Knob Screw Down Plunger
Kickplate
Kickplate
Safety Chain
Safety Chain
