DDMD Series


PAC's DDMD is our heavy duty version of our Delta Door. With an internal frame consisting of 2" x 6" lumber, laminated with 1/8" masonite hardboard & fiberglass on both inside & out, really makes this a strong, solid door.

  • Core is made of a 2" X 6" wood framing for top and lock side with 1-1/2" wood bottom and hinge side. Solid polystyrene core with 1/8" hardboard polyurethane laminated to core before heavy duty .045 fiberglass panel with UV inhibitor for sun protection is laminated to hardboard also with Polyurethane.
  • Colors: White, off-white, tan or gray with other colors available upon request with enough quantity.
  • Engineered to support standard locksets and deadbolts, or panic hardware and door closures.
  • Heavy duty extruded aluminum surround channel inner frame with miter cut corners screwed together.
  • Heavy duty extruded outer frame, with six (6) hinges integrated into frame for strength and security, mitered welded corners for strength.
  • Double vinyl weather seals.
  • Adjustable steel striker plate for lock and deadbolt.
  • Aluminum kick panel on the bottom of inside of door.
  • Standard sizes include 3' x 6' 8", & 4' x 6' 8".
  • Made in the U.S.A.

Applications include modular offices, man camps, some portable buildings, and any exterior applicaitons requiring a heavy duty door.


DDMD Series


PAC's DDMD is our heavy duty version of our Delta Door. With an internal frame consisting of 2" x 6" lumber, laminated with 1/8" masonite hardboard & fiberglass on both inside & out, really makes this a strong, solid door.

  • Core is made of a 2" X 6" wood framing for top and lock side with 1-1/2" wood bottom and hinge side. Solid polystyrene core with 1/8" hardboard polyurethane laminated to core before heavy duty .045 fiberglass panel with UV inhibitor for sun protection is laminated to hardboard also with Polyurethane.
  • Colors: White, off-white, tan or gray with other colors available upon request with enough quantity.
  • Engineered to support standard locksets and deadbolts, or panic hardware and door closures.
  • Heavy duty extruded aluminum surround channel inner frame with miter cut corners screwed together.
  • Heavy duty extruded outer frame, with six (6) hinges integrated into frame for strength and security, mitered welded corners for strength.
  • Double vinyl weather seals.
  • Adjustable steel striker plate for lock and deadbolt.
  • Aluminum kick panel on the bottom of inside of door.
  • Standard sizes include 3' x 6' 8", & 4' x 6' 8".
  • Made in the U.S.A.

Applications include modular offices, man camps, some portable buildings, and any exterior applicaitons requiring a heavy duty door.




Frame Colors

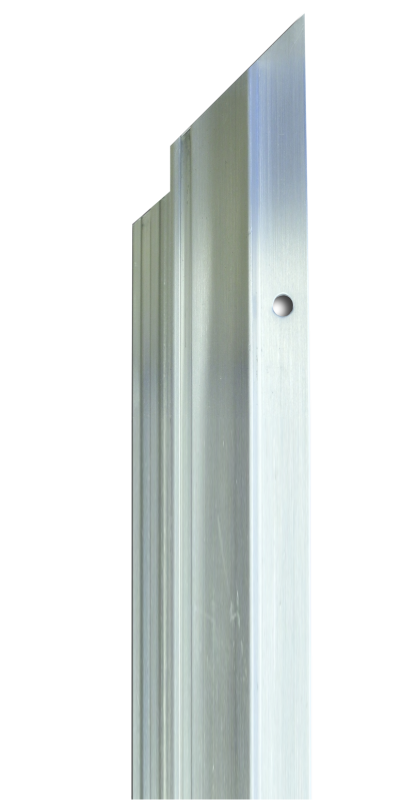

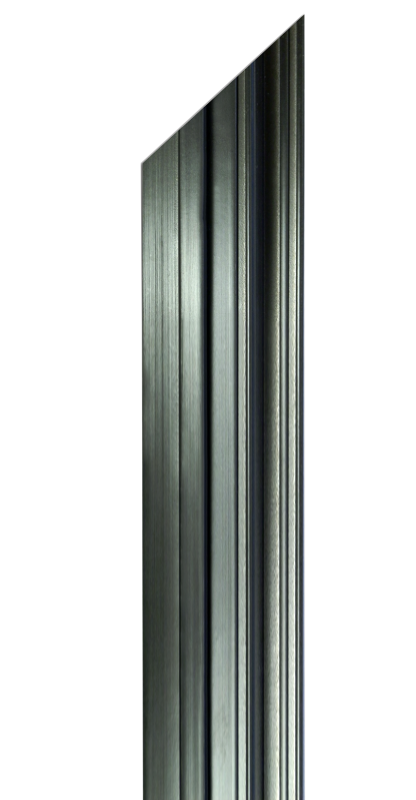

Mill Frame Extrusion
Mill Frame Extrusion

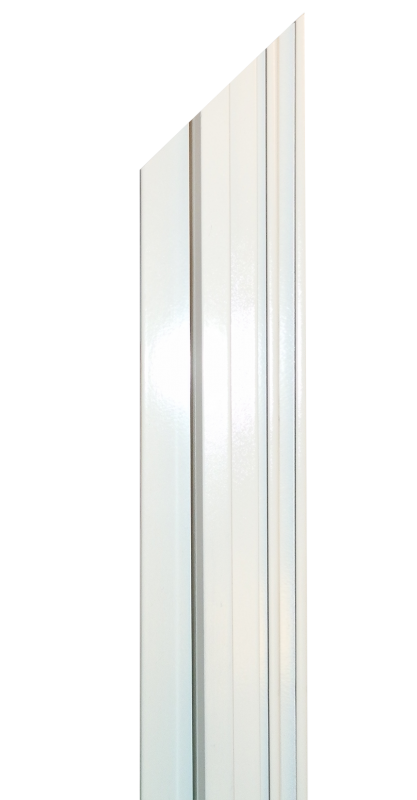

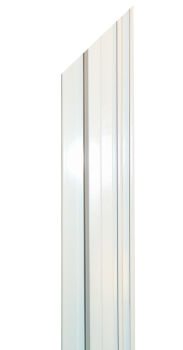

White Frame Extrusion
White Frame Extrusion
Bronze Framed Etrusion
Bronze Framed Etrusion
Frame Colors
Mill Frame Extrusion
Mill Frame Extrusion
White Frame Extrusion
White Frame Extrusion
Bronze Framed Etrusion
Bronze Framed Etrusion
Frame Colors
Mill Frame Extrusion
Mill Frame Extrusion
White Frame Extrusion
White Frame Extrusion
Bronze Framed Etrusion
Bronze Framed Etrusion
Door Colors
White
Off White
Tan
Hickory Moss
Grey/Pewter
Olive/Green
Brown
Black
Door Colors
White
Off White
Tan
Hickory Moss
Grey/Pewter
Olive/Green
Brown
Black
Door Colors
White
Off White
Tan
Hickory Moss
Grey/Pewter
Olive/Green
Brown
Black

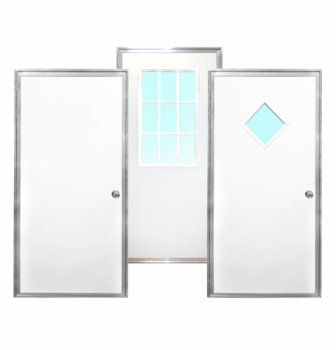

Window Options
10 x 10
10 x 10 Diamond
4 x 24
9 Lite
15 Lite
18 x 20
18 x 38
Window Options
10 x 10
10 x 10 Diamond
4 x 24
9 Lite
15 Lite
18 x 20
18 x 38
Window Options
10 x 10
10 x 10 Diamond
4 x 24
9 Lite
15 Lite
18 x 20
18 x 38
Bore Prep

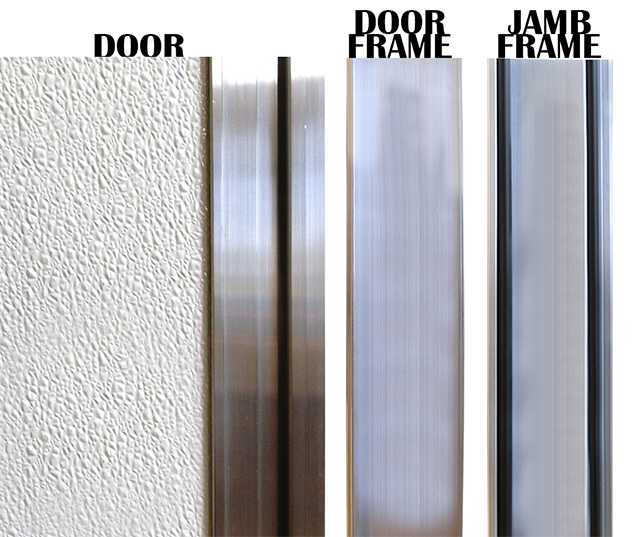

Blank
Blank

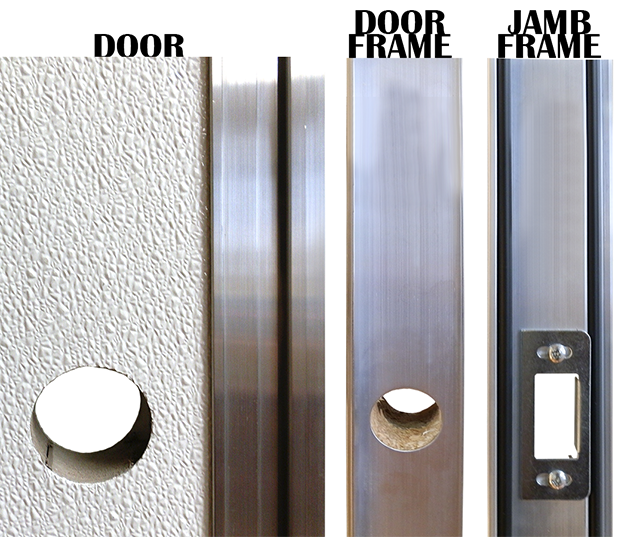

Door Knob Drive In Prep
Door Knob Drive In Prep

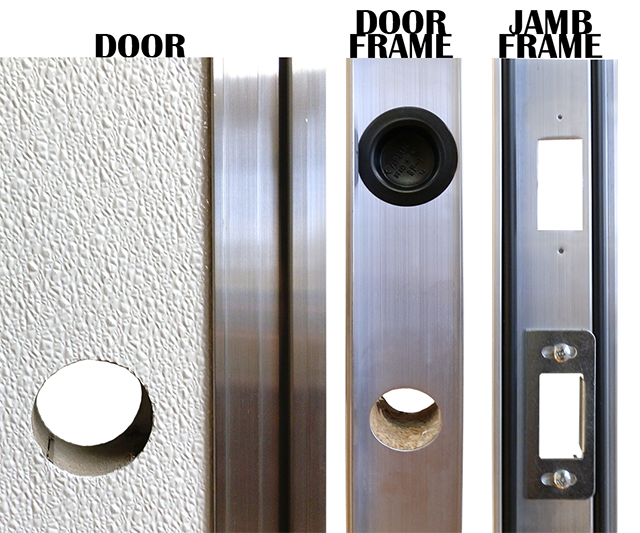

Door Knob Deadbolt Back-set Prep
Door Knob Deadbolt Back-set Prep

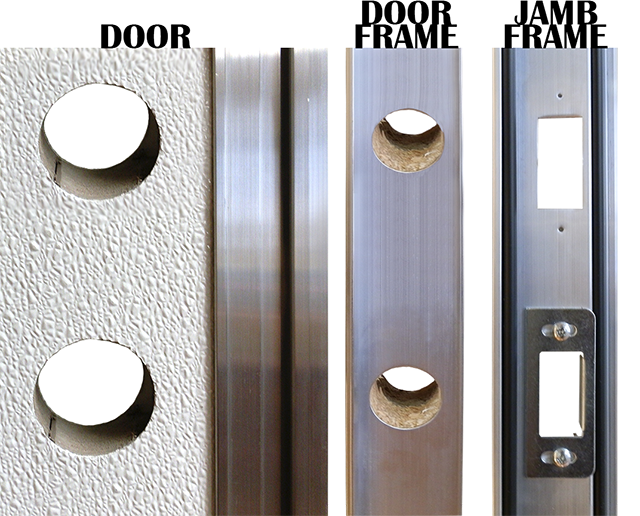

Door Knob & Deadbolt Prep
Door Knob & Deadbolt Prep

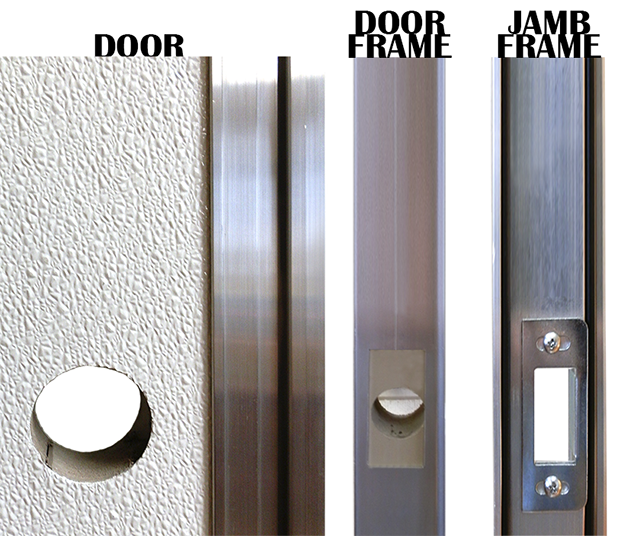

Door Knob Screw Down Prep
Door Knob Screw Down Prep

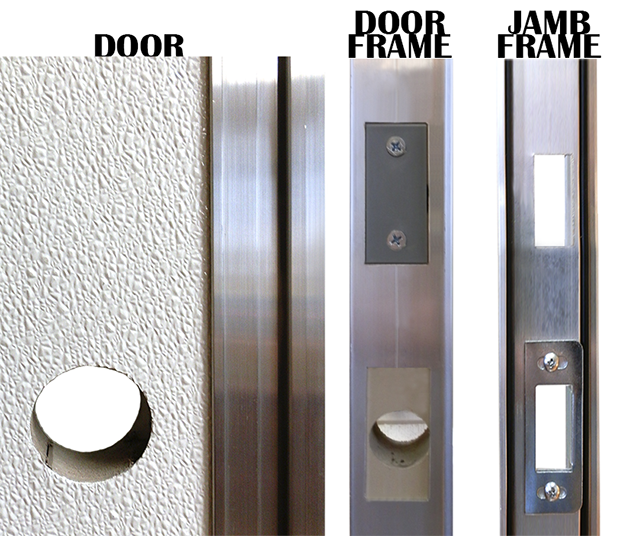

Door Knob Deadbolt Back-set Prep
Door Knob Deadbolt Back-set Prep

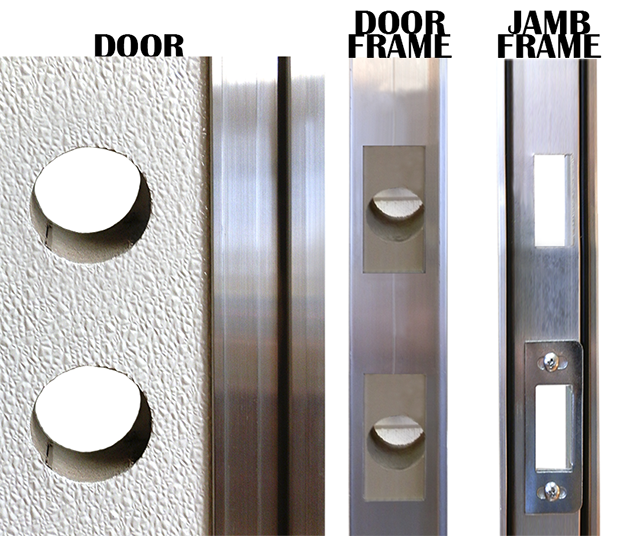

Door Knob & Deadbolt Screw-down Prep
Door Knob & Deadbolt Screw-down Prep
Bore Prep
Blank
Blank
Door Knob Drive In Prep
Door Knob Drive In Prep
Door Knob Deadbolt Back-set Prep
Door Knob Deadbolt Back-set Prep
Door Knob & Deadbolt Prep
Door Knob & Deadbolt Prep
Door Knob Screw Down Prep
Door Knob Screw Down Prep
Door Knob Deadbolt Back-set Prep
Door Knob Deadbolt Back-set Prep
Door Knob & Deadbolt Screw-down Prep
Door Knob & Deadbolt Screw-down Prep
Bore Prep
Blank
Blank
Door Knob Drive In Prep
Door Knob Drive In Prep
Door Knob Deadbolt Back-set Prep
Door Knob Deadbolt Back-set Prep
Door Knob & Deadbolt Prep
Door Knob & Deadbolt Prep
Door Knob Screw Down Prep
Door Knob Screw Down Prep
Door Knob Deadbolt Back-set Prep
Door Knob Deadbolt Back-set Prep
Door Knob & Deadbolt Screw-down Prep
Door Knob & Deadbolt Screw-down Prep
Hardware

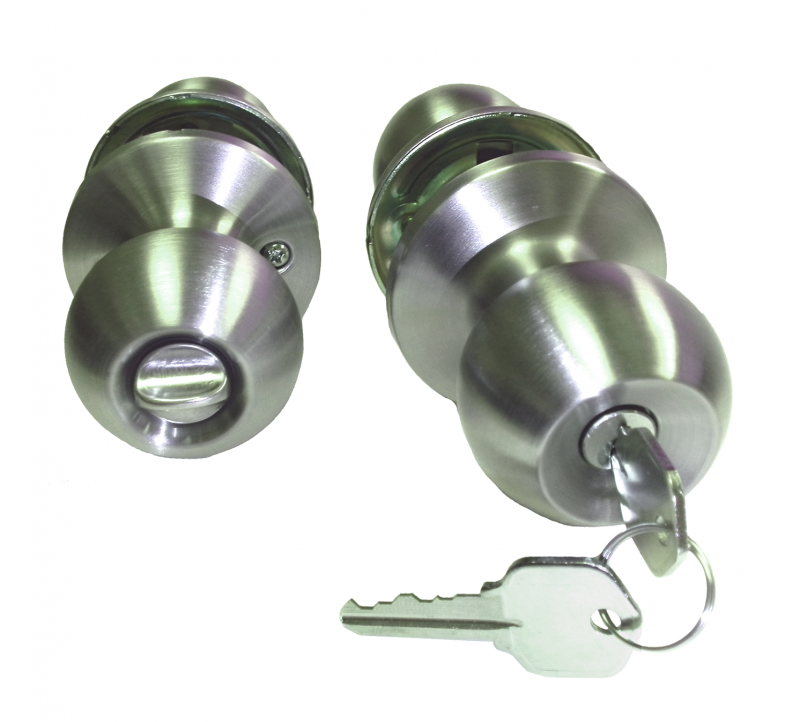

Door Knob
Door Knob

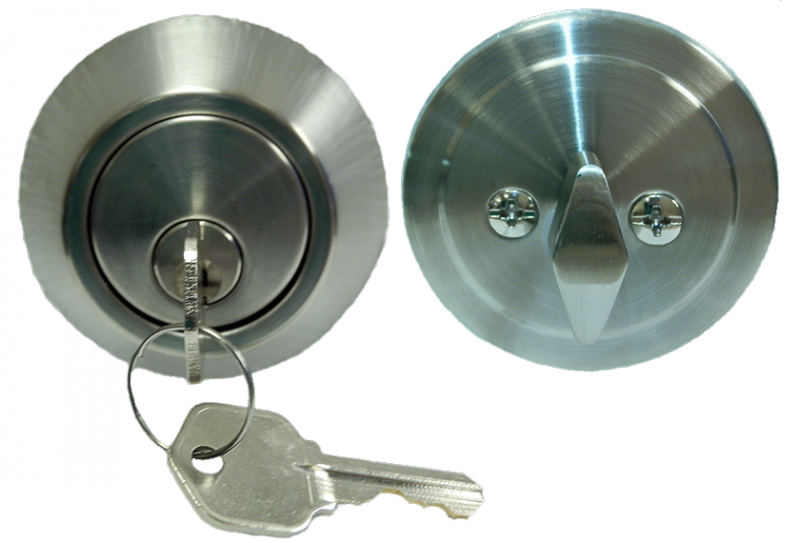

Deadbolt
Deadbolt

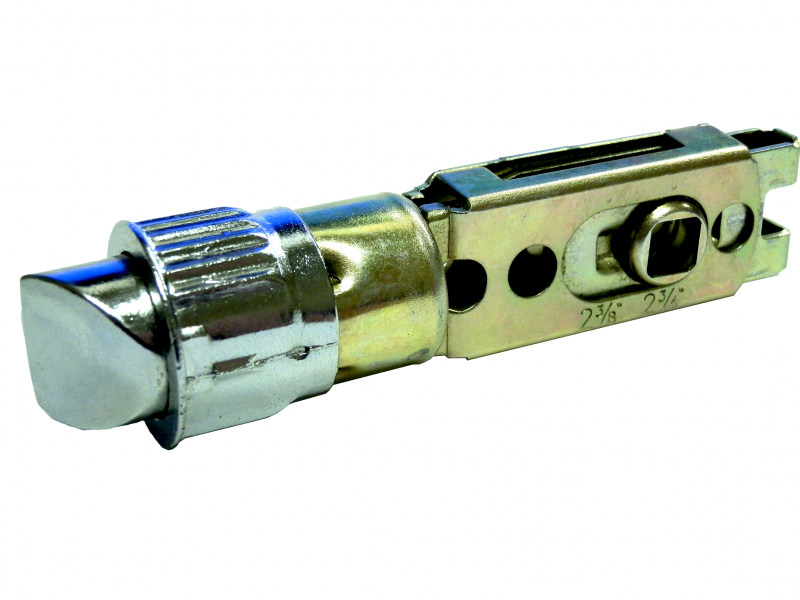

Door Knob Drive-In Plunger
Door Knob Drive-In Plunger

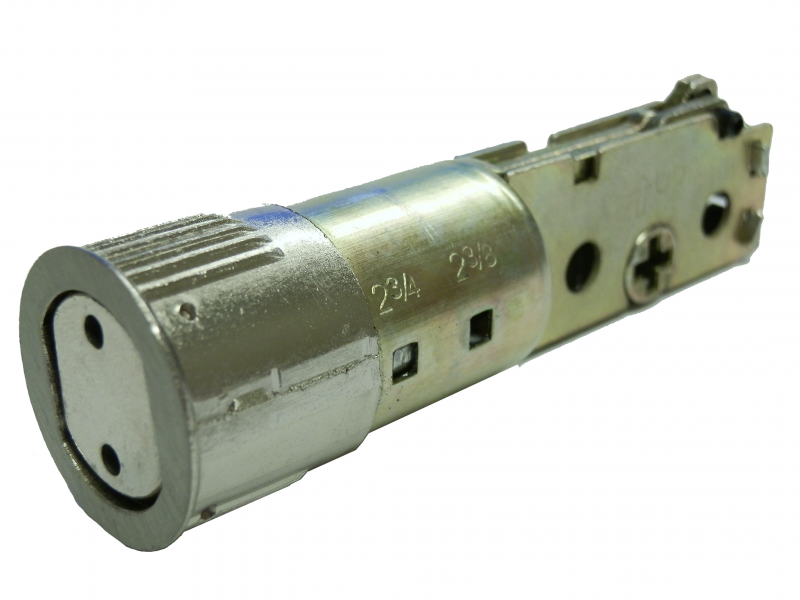

Deadbolt Drive-in Plunger
Deadbolt Drive-in Plunger

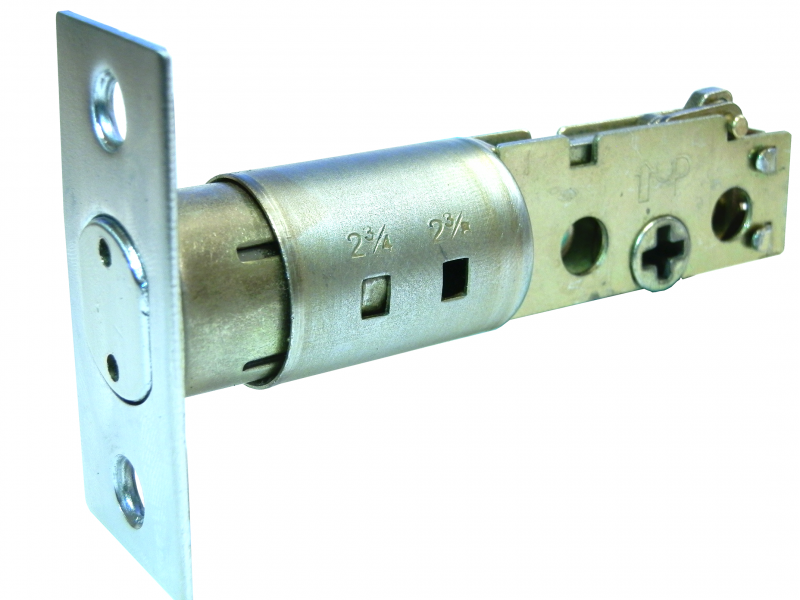

Deadbolt Screw-down Plunger
Deadbolt Screw-down Plunger
Door Knob Screw-Down Plunger
Door Knob Screw-Down Plunger

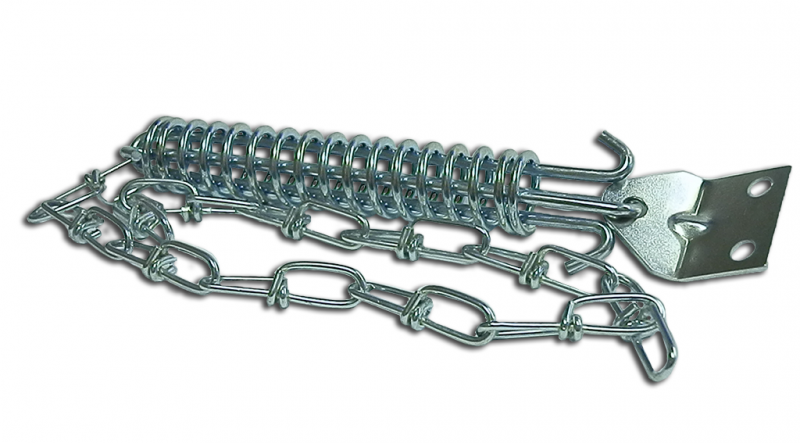

Safety Chain
Safety Chain
Hardware
Door Knob
Door Knob
Deadbolt
Deadbolt
Door Knob Drive-In Plunger
Door Knob Drive-In Plunger
Deadbolt Drive-in Plunger
Deadbolt Drive-in Plunger
Deadbolt Screw-down Plunger
Deadbolt Screw-down Plunger
Door Knob Screw-Down Plunger
Door Knob Screw-Down Plunger
Safety Chain
Safety Chain
Hardware
Door Knob
Door Knob
Deadbolt
Deadbolt
Door Knob Drive-In Plunger
Door Knob Drive-In Plunger
Deadbolt Drive-in Plunger
Deadbolt Drive-in Plunger
Deadbolt Screw-down Plunger
Deadbolt Screw-down Plunger
Door Knob Screw-Down Plunger
Door Knob Screw-Down Plunger
Safety Chain
Safety Chain
